Home > JOHN DEERE > EXCAVATORS > Metric / LC Series
Fits Models: 80, 110, 120, 160LC, 200LC, 230LC, 270LC, 330LC, 370, 450LC, 550LC, 750
Sort By:
Page of 1

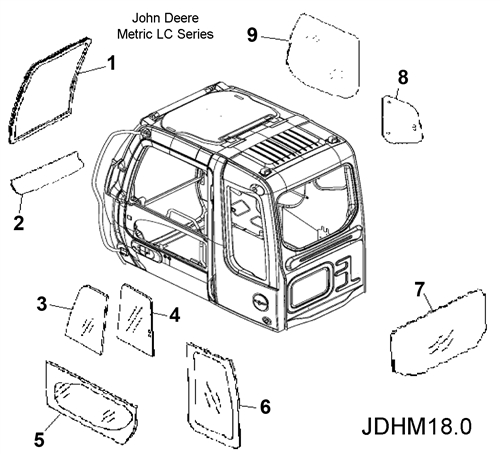

# 1. Front Windshield - Metric LC Series - JDHM18.1
# 1. Front Windshield - Metric LC Series - JDHM18.1
Our selling price: $314.42

4mm bronzed tempered curved with no fritt and no holes  / Fits Models: 80, 110, 120, 160LC, 200LC, 230LC, 270LC, 330LC, 370, 450LC, 550LC, 750 / Reference Dealer Part # AT214113 / Installation Notes: Rubber gasket install; reuse old gasket more info
# 2. Lower Windshield - Metric LC Series - JDHM18.2
# 2. Lower Windshield - Metric LC Series - JDHM18.2
Our selling price: $181.98

4mm bronzed tempered curved with black fritt band at sides/bottom & .5" holes x4 / Fits Models: 80, 110, 120, 160LC, 200LC, 230LC, 270LC, 330LC, 370, 450LC, 550LC, 751 / Reference Dealer Part # AT214097 / Installation Notes: Requires the left and right latch assembly to install  No Glue, no gasket, just fits into place more info
# 3. Door Front Slider - Metric LC Series - JDHM18.3
# 3. Door Front Slider - Metric LC Series - JDHM18.3
Our selling price: $155.59

Serial number break**
HTHM18.3A Latches are not level and front slider lock is about 9 1/2" up from frame.
HTHM18.3B Order this if your latch locks are level about 11 1/2" up from frame --this is early and the least common.
4mm bronze tempered flat glass with no fritt and .5" holes x2 / Fits Models: 80, 110, 120, 160LC, 200LC, 230LC, 270LC, 330LC, 370, 450LC, 550LC, 752 / Reference Dealer Part # AT304642 / Installation Notes: Install into door window frame more info
# 4. Door Rear Slider - Metric LC Series - JDHM18.4
# 4. Door Rear Slider - Metric LC Series - JDHM18.4
Our selling price: $155.59

4mm bronze tempered flat glass with no fritt and .5" holes x2  / Fits Models: 80, 110, 120, 160LC, 200LC, 230LC, 270LC, 330LC, 370, 450LC, 550LC, 753 / Reference Dealer Part # AT304643 / Installation Notes: Install into door window frame more info
# 5. Lower Door Glass - Metric LC Series - JDHM18.5
# 5. Lower Door Glass - Metric LC Series - JDHM18.5
Our selling price: $235.53

4mm bronze tempered flat glass with fritt all around and no holes / Fits Models: 80, 110, 120, 160LC, 200LC, 230LC, 270LC, 330LC, 370, 450LC, 550LC, 754 / Reference Dealer Part # 4369657 / Installation Notes: OEM has gasket attached; Ours in glue in and comes with windlace more info
# 6. Left Side Quarter Glass - Metric LC Series - JDHM18.6
# 6. Left Side Quarter Glass - Metric LC Series - JDHM18.6
Our selling price: $267.80

4mm bronze tempered curved with fritt and no holes / Fits Models: 80, 110, 120, 160LC, 200LC, 230LC, 270LC, 330LC, 370, 450LC, 550LC, 755 / Reference Dealer Part # 4369556 / Installation Notes: Glues onto Cab No Gasket Included more info
# 7. Back Glass - Metric LC Series - JDHM18.7
# 7. Back Glass - Metric LC Series - JDHM18.7
Our selling price: $217.02

4mm bronze tempered flat glass with no fritt and no holes / Fits Models: 80, 110, 120, 160LC, 200LC, 230LC, 270LC, 330LC, 370, 450LC, 550LC, 756 / Reference Dealer Part # AT215124 / Installation Notes: Rubber gasket install; reuse old gasket more info
# 8. Small Boom Side Glass - Metric LC Series - JDHM18.8
# 8. Small Boom Side Glass - Metric LC Series - JDHM18.8
Our selling price: $105.43

4mm bronze tempered flat glass with no fritt and (Hole options below) / Fits Models: 80, 110, 120, 160LC, 200LC, 230LC, 270LC, 330LC, 370, 450LC, 550LC, 757 / Reference Dealer Part # AT214167 / Installation Notes: Bolt in installation with .5" holes x3 more info
# 9. Large Boom Side Glass - Metric LC Series - JDHM18.9
# 9. Large Boom Side Glass - Metric LC Series - JDHM18.9
Our selling price: $295.75

4mm bronze tempered flat glass with no fritt and no holes / Fits Models: 80, 110, 120, 160LC, 200LC, 230LC, 270LC, 330LC, 370, 450LC, 550LC, 758 / Reference Dealer Part # AT214163 / Installation Notes: Rubber gasket install; reuse old gasket more info
